Thread: One very serious scope mount.

  1. #11
    Machine Gunner
    Join Date
    Apr 2011
    Location
    Texas
    Rounds Down Range
    166
    Post Thanks / Like

    Re: One very serious scope mount.

    Quote Originally Posted by nf1e View Post
    I have an M1D and this is much more positive.
    I've had several, but the serations were worn badly. never figured out just what that push button does.. Art L.

  2. #12
    Moderator nf1e's Avatar
    Join Date
    Mar 2011
    Location
    New Preston, CT
    Rounds Down Range
    6,036
    Post Thanks / Like

    Re: One very serious scope mount.

    Quote Originally Posted by The Comet View Post
    I've had several, but the serations were worn badly. never figured out just what that push button does.. Art L.
    If you are talking about the IDF mount, it's not a push button. It appears to be a cover for the plunger detent spring.

  3. Thanks 4570govt, VanHahner thanked for this post
  4. #13
    Machine Gunner
    Join Date
    Apr 2011
    Location
    Texas
    Rounds Down Range
    166
    Post Thanks / Like

    Re: One very serious scope mount.

    yes, the IDF mount,, that round button compresses, maybe it lifts the unit off the serations for removal... Art L.

  5. #14
    Moderator nf1e's Avatar
    Join Date
    Mar 2011
    Location
    New Preston, CT
    Rounds Down Range
    6,036
    Post Thanks / Like

    Re: One very serious scope mount.

    Quote Originally Posted by The Comet View Post
    yes, the IDF mount,, that round button compresses, maybe it lifts the unit off the serations for removal... Art L.

    Ya got me going now Art. I have 2 of them and didn't know it compresses. I will have to take a closer look when I am in the shop. Thanks for teaching me something new. Today is not a total loss.

  6. Thanks VanHahner thanked for this post
  7. #15
    Machine Gunner
    Join Date
    Apr 2011
    Location
    Texas
    Rounds Down Range
    166
    Post Thanks / Like

    Re: One very serious scope mount.

    Never could figure out if it comes apart, let me know what you find out.. Art L.

  8. Thanks nf1e, VanHahner thanked for this post
  9. #16
    Moderator nf1e's Avatar
    Join Date
    Mar 2011
    Location
    New Preston, CT
    Rounds Down Range
    6,036
    Post Thanks / Like

    Re: One very serious IDF scope mount.

    Here we go Art.

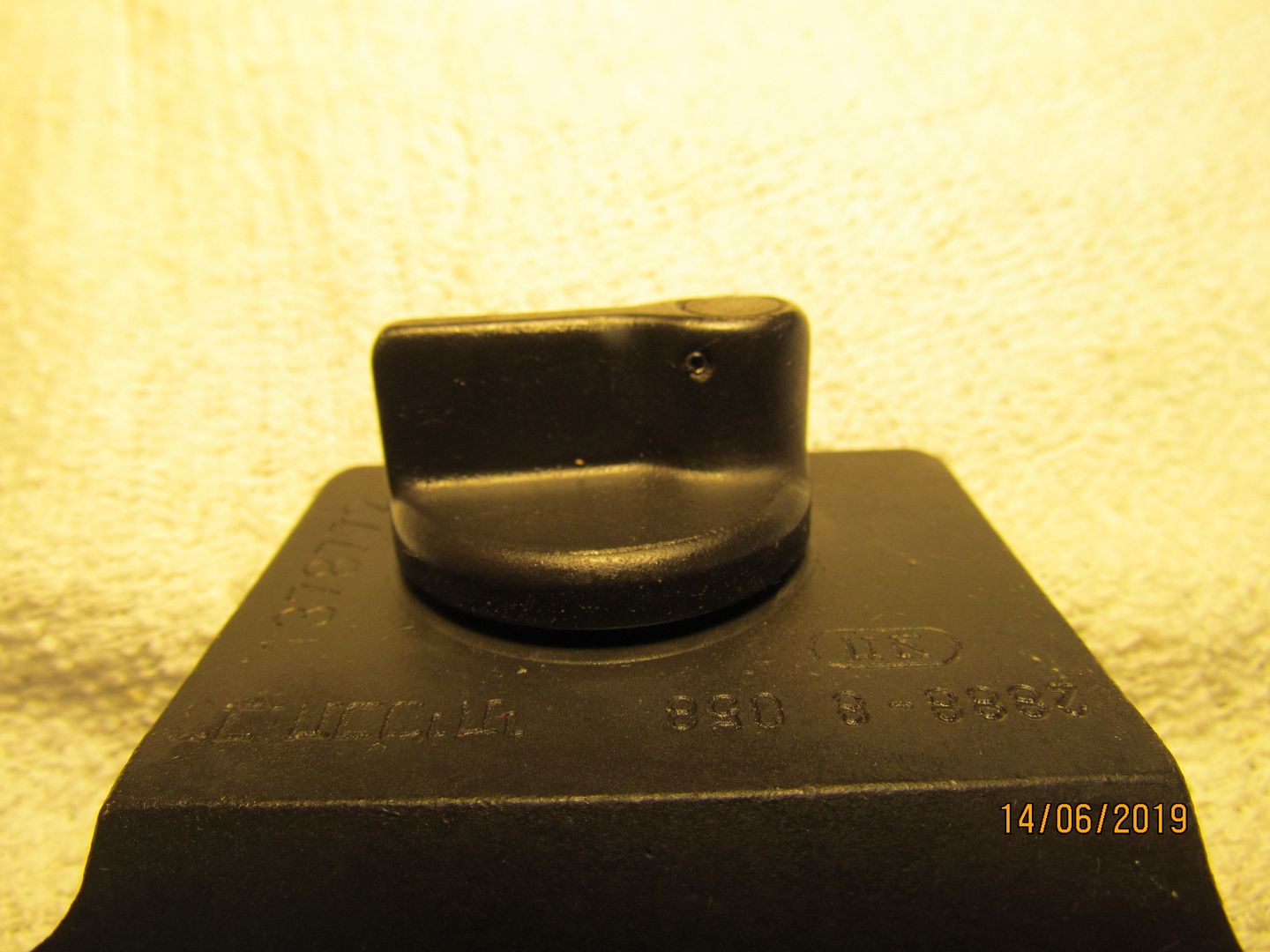

    After careful examination and disassembly here is what I found. The button, as you call it, is simply a grooved re-tension cap for the spring which establishes the pressure for the ratchet system and is held in place with a tiny pin that rides in the groove. Photos of mount assembled and with spring and cap removed. That is one itty bitty pin. Had a heck of a time finding something to use as a punch to get it apart.




  10. Thanks wrwindsor, 4570govt, polish29 thanked for this post
    Likes VanHahner liked this post
  11. #17
    Administrator Tarheel Trooper's Avatar
    Join Date
    Apr 2011
    Location
    Live Free Die Hard
    Rounds Down Range
    4,440
    Post Thanks / Like

    Re: One very serious scope mount.

    Thanks for the pics
    On my honor,
    I will never betray my badge,
    my integrity, my character,
    or the public trust.
    I will always have
    the courage to hold myself
    and others accountable for our actions.
    I will always uphold the constitution,
    my community, and the agency I serve.

    Regional Coordinator - Southeast Region
    NRA Basic Pistol Instructor
    NC C.C.H. Instructor

    "The Artist Formally Known As Shadow"

  12. Thanks nf1e thanked for this post
  13. #18
    Sgt Major VanHahner's Avatar
    Join Date
    May 2011
    Location
    Ca.
    Rounds Down Range
    4,446
    Post Thanks / Like

    Re: One very serious scope mount.

    Was it solid or a roll pin ?
    U.S.M.C. Scout Sniper 67-68

  14. #19
    Moderator nf1e's Avatar
    Join Date
    Mar 2011
    Location
    New Preston, CT
    Rounds Down Range
    6,036
    Post Thanks / Like

    Re: One very serious scope mount.

    Roll pin.

  15. Thanks VanHahner thanked for this post
